    Insuredx Architectures

    Functional Architecture

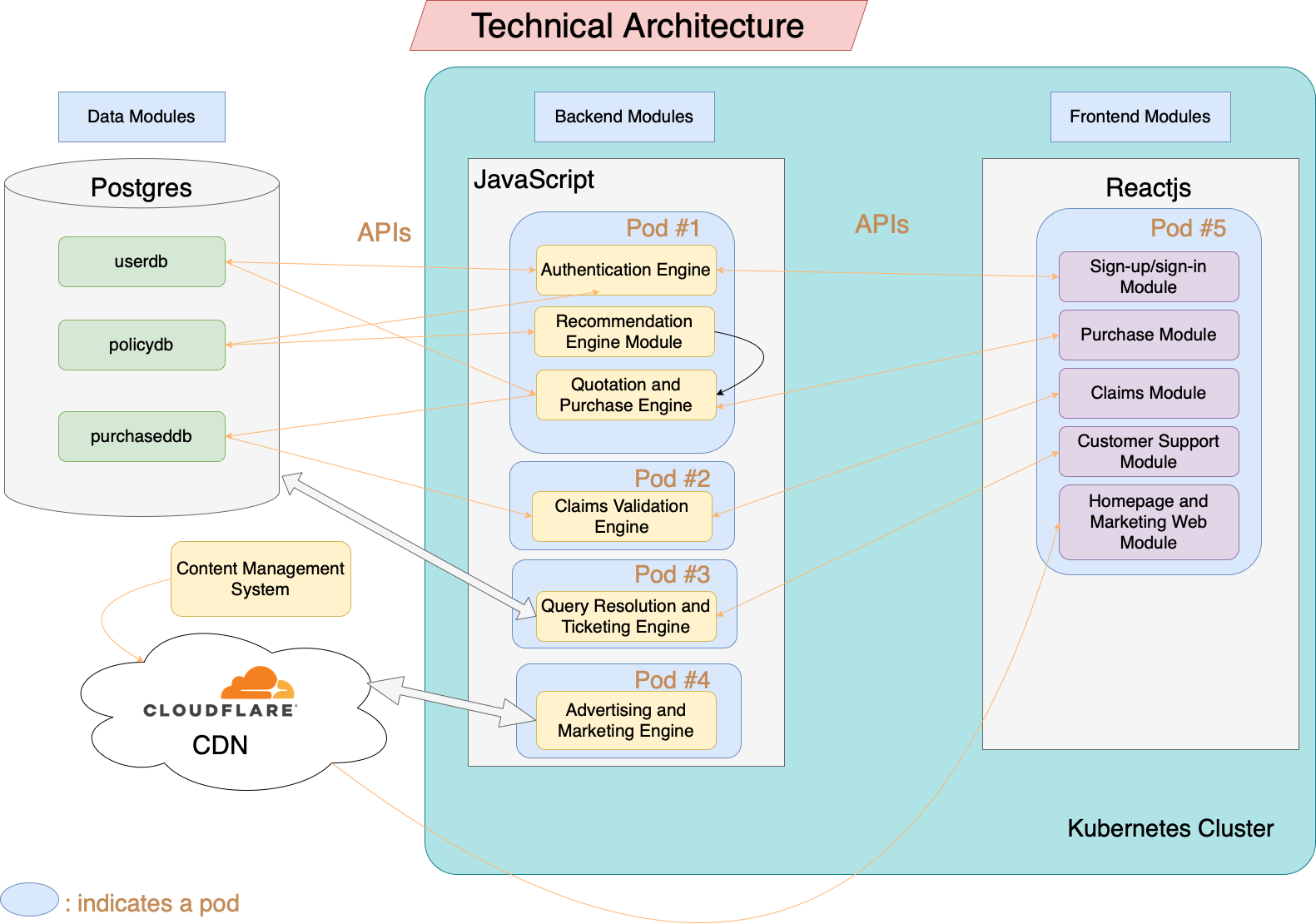

    Technical Architecture


    Machine Specs

    • Frontend - Nginx - 2 replicas - per replica - 2 vCPU and 512mb ram
    • Nginx ingress controller for the API - 2 replicas - 2 vCPU and 512mb ram
    • Backend
      • Pod #1 - 2 replicas - per replica - 1vCPU and 512MB RAM
      • Pod #2 - 2 replicas - per replica - 1vCPU and 512MB RAM
      • Pod #3 - 2 replicas - per replica - 1vCPU and 512MB RAM
      • Pod #4 - 2 replicas - per replica - 1vCPU and 512MB RAM
    • Postgres - managed
      • postgres - master - 4vcpu - 4gb ram
      • read-replica - 2vCPU - 4gb ram
    • Cloudflare CDN

    Costing

    • 2 machines with 8 vCPU with 4gb RAM - Kubernetes - $96(₹8000)/month
    • PostgreSQL - $180(₹15000)/month
